Large Kilns

18,000-110,000 Board Feet

PDF Download our Large Kilns brochure (PDF 252KB)

Nova Dry Kiln offers a more efficient lumber drying system that results in higher efficiency and higher profit.

At Nova Dry Kiln, we strive to provide a complete drying solution for our primary and secondary woodworking industry clients. Nova’s large kilns range from 18,000 to 110,000 board feet chambers. Our “kinder, gentler” method of drying lumber dramatically reduces the lumber’s degrade and maintains the time parameters of conventional kiln schedules. We have designed our large kilns to surpass new regulations, as well as consumer requirements, for kilns that decrease degrade and reduce waste. This design translates to maximum efficiency and improved financial results for the plant. All Nova kilns are of the highest quality, longevity, and operational economy, plus they are the easiest to use. We can provide turnkey construction services along with startup assistance as part of our overall drying solution. Contact our technical staff today to discuss the best drying solution for your facility!

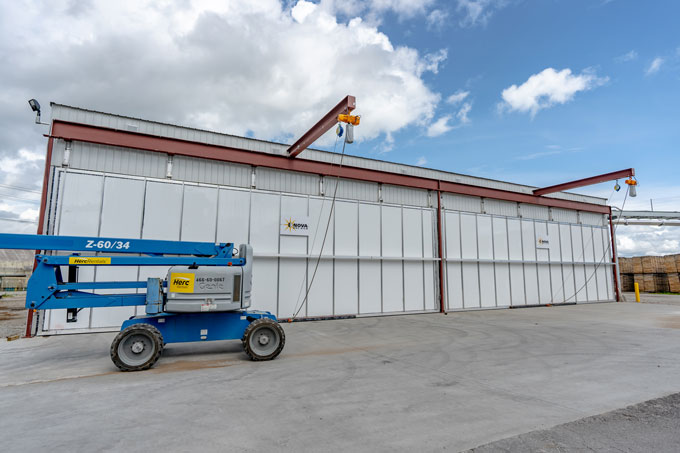

Large wood drying kiln

Standard Features

  • Timber-Dry Management Control System
  • Top- Hinge door design prevents rolling of door seal
  • Aluminum interior with seals for maximum moisture protection
  • 1/8″ aluminum side wall bumpers
  • G-Rib metal exterior
  • R-Factor 34 pre-insulated panels
  • All Aluminum Circulating fan wall
  • Standard horsepower heat and exhaust
  • Calibrated Powered Variable Exhaust System
  • Adjustable overhead tarp baffle
  • Maximum sustainable kiln temperature of 160°F
  • Normal operating temperature of 90°-140°F (30°-60°C)
  • Access door to inspect the lumber
  • Three phase kiln duty motors
  • Detailed assembly instruction manual
  • Free lifetime technical support

Options

  • Steam to hot water heat exchanger
  • Pallet heat treat controls
  • Network capability for Timber-Dry Management
  • Hot Water Floor Heating System
  • Wood waste, propane or natural gas hot water boiler
  • Boiler connection kit
  • Wood waste automatic feed system
  • Heated control room or basic control room
  • High horsepower heat and exhaust
  • Custom voltages
  • Door opening system with safety chain
  • Indoor installation – eliminates control room and door opening system
  • Construction supervision services
  • Turnkey construction services
  • Start-up services
Nova Dry Kiln Model Average 4/4(25mm) board capacity Average 8/4(50mm) board capacity Pack depth Entry width Interior depth Interior height Concrete pad specs
(PDF file)
KDK-18DS 15,713 bd. ft.
(37 cub. m.)
20,548 bd. ft.
(48 cub. m.)
4 ft.
(1.22 m.)
22 ft.
(6.70 m.)
21 ft. 6 in.
(6.55 m.)
17 ft. 6 in.
(5.33 m.)
KDK-18DS Pad Specs
KDK-18N 19,094 bd. ft.
(45 cub. m.)
24,970 bd. ft.
(59 cub. m.)
4 ft.
(1.22 m.)
26 ft.
(7.92 m.)
21 ft. 6 in.
(6.55 m.)
17 ft. 6 in.
(5.33 m.)
KDK-18N Pad Specs
KDK-18EXT 20,885 bd. ft.
(49 cub. m.)
27,311 bd. ft.
(64 cub. m.)
4 ft.
(1.22 m.)
28 ft.
(8.53 m.)
21 ft. 6 in.
(6.55 m.)
17 ft. 6 in.
(5.33 m.)
KDK-18EXT Pad Specs
KDK-18EXT-P 26,255 bd. ft.
(62 cub. m.)
34,333 bd. ft.
(81 cub. m.)
4 ft.
(1.22 m.)
34 ft.
(10.4 m.)
21 ft. 6 in.
(6.55 m.)
17 ft. 6 in.
(5.33 m.)
KDK-18EXT Pad Specs
KDK-25DDS 16,973 bd. ft.
(40 cub. m.)
22,195 bd. ft.
(52 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
18 ft.
(5.49 m.)
25 ft. 8 in.
(7.82 m.)
17 ft. 6 in.
(5.33 m.)
KDK-25DDS Pad Specs
KDK-25DS 20,951 bd. ft.
(49 cub. m.)
27,397 bd. ft.
(65 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
22 ft.
(6.70 m.)
25 ft. 8 in.
(7.82 m.)
17 ft. 6 in.
(5.33 m.)
KDK-25DS Pad Specs
KDK-25N 25,459 bd. ft.
(60 cub. m.)
33,293 bd. ft.
(79 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
26 ft.
(7.92 m.)
25 ft. 8 in.
(7.82 m.)
17 ft. 6 in.
(5.33 m.)
KDK-25N Pad Specs
KDK-25EXT 27,846 bd. ft.
(66 cub. m.)
36,414 bd. ft.
(86 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
28 ft.
(8.53 m.)
25 ft. 8 in.
(7.82 m.)
17 ft. 6 in.
(5.33 m.)
KDK-25EXT Pad Specs
KDK-25EXT-P 35,000 bd. ft.
(83 cub. m.)
45,778 bd. ft.
(108 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
34 ft.
(10.4 m.)
25 ft. 8 in.
(7.82 m.)
17 ft. 6 in.
(5.33 m.)
KDK-25EXT-P Pad Specs
KDK-33DS 27,934 bd. ft.
(66 cub. m.)
36,530 bd. ft.
(86 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
22 ft.
(6.70 m.)
28 ft. 8 in.
(8.74 m.)
21 ft. 9 in.
(6.63 m.)
KDK-33DS Pad Specs
KDK-33N 33,946 bd. ft.
(88 cub. m.)
44,390 bd. ft.
(105 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
26 ft.
(7.92 m.)
28 ft. 8 in.
(8.74 m.)
21 ft. 9 in.
(6.63 m.)
KDK-33N Pad Specs
KDK-33EXT 37,128 bd. ft.
(88 cub. m.)
48,552 bd. ft.
(115 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
28 ft.
(8.53 m.)
28 ft. 8 in.
(8.74 m.)
21 ft. 9 in.
(6.63 m.)
KDK-33EXT Pad Specs
KDK-33EXT-P 46,675 bd. ft.
(110 cub. m.)
61,037 bd. ft.
(144 cub. m.)
4 – 8 ft.
(1.22 – 2.44 m.)
34 ft.
(10.4 m.)
28 ft. 8 in.
(8.74 m.)
21 ft. 9 in.
(6.63 m.)
KDK-33EXT-P Pad Specs
KDK-42DS 34,918 bd. ft.
(82 cub. m.)
45,662 bd. ft.
(108 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
22 ft.
(6.70 m.)
32 ft. 10 in.
(10.0 m.)
21 ft. 9 in.
(6.63 m.)
KDK-42DS Pad Specs
KDK-42N 42,434 bd. ft.
(100 cub. m.)
55,488 bd. ft.
(131 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
26 ft.
(7.92 m.)
32 ft. 10 in.
(10.0 m.)
21 ft. 9 in.
(6.63 m.)
KDK-42N Pad Specs
KDK-42EXT 46,410 bd. ft.
(109 cub. m.)
60,690 bd. ft.
(143 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
28 ft.
(8.53 m.)
32 ft. 10 in.
(10.0 m.)
21 ft. 9 in.
(6.63 m.)
KDK-42EXT Pad Specs
KDK-42EXT-P 58,344 bd. ft.
(137 cub. m.)
76,296 bd. ft.
(180 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
34 ft.
(10.4 m.)
32 ft. 10 in.
(10.0 m.)
21 ft. 9 in.
(6.63 m.)
KDK-52EXT-P Pad Specs
KDK-52DS 43,648 bd. ft.
(103 cub. m.)
57,078 bd. ft.
(135 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
22 ft.
(6.70 m.)
35 ft. 8 in.
(10.9 m.)
26 ft.
(7.92 m.)
KDK-52DS Pad Specs
KDK-52N 53,040 bd. ft.
(125 cub. m.)
69,360 bd. ft.
(164 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
26 ft.
(7.92 m.)
35 ft. 8 in.
(10.9 m.)
26 ft.
(7.92 m.)
KDK-52N Pad Specs
KDK-52EXT 58,013 bd. ft.
(137 cub. m.)
75,863 bd. ft.
(179 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
28 ft.
(8.53 m.)
35 ft. 8 in.
(10.9 m.)
26 ft.
(7.92 m.)
KDK-52EXT Pad Specs
KDK-52EXT-P 72,930 bd. ft.
(172 cub. m.)
95,370 bd. ft.
(225 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
34 ft.
(10.4 m.)
35 ft. 8 in.
(10.9 m.)
26 ft.
(7.92 m.)
KDK-52EXT-P Pad Specs
KDK-52EXT-P2 88,953 bd. ft.
(210 cub. m.)
104,690 bd. ft.
(247 cub. m.)
4 – 6 ft.
(1.22 – 1.83 m.)
42 ft.
(12.8 m.)
35 ft. 8 in.
(10.9 m.)
26 ft.
(7.92 m.)
KDK-52EXT-P2 Pad Specs
KDK-62N 63,648 bd. ft.
(150 cub. m.)
83,232 bd. ft.
(196 cub. m.)
6 – 8 ft.
(1.83 – 2.44 m.)
26 ft.
(7.92 m.)
41 ft.
(12.5 m.)
26 ft.
(7.92 m.)
KDK-62N Pad Specs
KDK-62EXT-P 87,516 bd. ft.
(206 cub. m.)
114,444 bd. ft.
(270 cub. m.)
6 – 8 ft.
(1.83 – 2.44 m.)
34 ft.
(10.4 m.)
41 ft.
(12.5 m.)
26 ft.
(7.92 m.)
KDK-62EXT-P Pad Specs
KDK-62EXT-P2 106,744 bd. ft.
(252 cub. m.)
125,628 bd. ft.
(296 cub. m.)
6 – 8 ft.
(1.83 – 2.44 m.)
42 ft.
(12.8 m.)
41 ft.
(12.5 m.)
26 ft.
(7.92 m.)
KDK-62EXT-P2 Pad Specs
