Timber-Tike Kilns

Front Loading and End Loading Models

PDF Download our Timber-tike Kilns brochure (PDF 252KB)

At Nova Dry Kiln, we recognize that woodworkers needs for wood-drying kilns are unique. Specialty wood shops, though small in size, have found themselves paying excessive wood drying costs. An in-house drying kiln would cut those costs drastically, but the kilns that were available were too large for a specialty wood shop. So in an effort to address these needs, Nova is proud to introduce the new Timber-Tike Dry Kiln. The Timber-Tike is available in two configurations, front loading and end loading. Depending on the needs of the shop, Nova can recommend which kiln is right for you.

Timber-Tike Front Loading Kiln Kit

TTF-4150 front loading dry kiln Features

  • Light weight side hinge doors for fork-lift loading
  • Kiln duty door seals with clamping system
  • 1/8″ aluminum interior lining
  • G-Rib steel exterior
  • R-20 Moisture resistant insulated panels
  • Circulating fan wall
  • High horsepower
  • Hot water heat exchanger
  • Calibrated Powered exhaust
  • Semi-Automatic control instrumentation package
  • 230VAC single phase
  • Outside installation on concrete pad poured by customer
  • Tarp baffle

Options

  • high horsepower heat
  • heated floor
  • Gas, electric or wood waste boiler
  • Plumbing connection kit
Nova Dry Kiln Model Average 4/4(25mm)board capacity Average 8/4 (50mm)board capacity Entry width Interior length Operating temperature Concrete pad specs
(PDF file)
TTF-4150 3,400 bd. ft.
(8 cub. m.)
4,080 bd. ft.
(10 cub. m.)
17 Ft.
(5.18m.)
7 Ft. – 6 5/8″
(2.3 m.)
90-140°F
(30-60°C)
TT-4150 Pad Specs
TTF-5000 4,163 bd. ft.
(10 cub. m.)
4,835 bd. ft.
(11 cub. m.)
21 Ft.
(6.40m.)
7 Ft. – 6 5/8″
(2.3 m.)
90-140°F
(30-60°C)
TT-5000 Pad Specs 5000a3W
TTF-6200 5,100 bd. ft.
(12 cub. m.)
6,120 bd. ft.
(14 cub. m.)
25 Ft. – 3″
(7.70m.)
7 Ft. – 6 5/8″
(2.3 m.)
90-140°F
(30-60°C)
TT-6200 Pad Specs

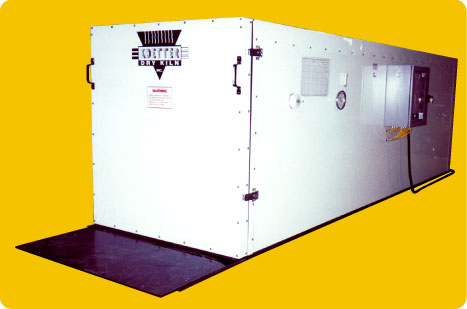

Timber-Tike End Loading Kiln Kit

Timber-tike end loading

Features

  • Side hinged door for easy access to the lumber stack
  • Kiln duty door seals with clamping system
  • 1/8” aluminum interior lining
  • G-Rib steel exterior
  • R-20 moisture resistant insulated panels
  • Circulating fan wall
  • High horsepower
  • Hot water heating exchanger
  • Calibrated Powered exhaust
  • Semi-Automatic control instrumentation package
  • 230VAC single phase
  • Outside installation on concrete pad poured by customer
  • Tarp baffle

Options

  • Heated floor
  • Lumber cart
  • Gas, electric or wood waste boiler
  • Plumbing connection kit
Nova Dry Kiln Model Average 4/4 (25mm)board capacity Average 8/4 (50mm)board capacity Entry width Interior length Operating temperature Concrete pad specs
(PDF file)
TT-650 544 bd. ft.
(1 cub. m.)
653 bd. ft.
(1 cub. m.)
4 Ft.
(1.22m.)
13 Ft.
(4.22m.)
90-140°F
(30-60°C)
TT-650 Pad Specs
TT-4150 3,373 bd. ft.
(8 cub. m.)
3,917 bd. ft.
(9 cub. m.)
5 Ft.
(1.53m.)
17 Ft.
(5.18m.)
90-140°F
(30-60°C)
TTF-4150 Pad Specs
TT-5000 4,163 bd. ft.
(10 cub. m.)
4,835 bd. ft.
(11 cub. m.)
5 Ft.
(1.53m.)
21 Ft.
(6.40m.)
90-140°F
(30-60°C)
TT-5000 Pad Specs
TT-6200 5059 bd. ft.
(12 cub. m.)
5875 bd. ft.
(14 cub. m.)
5 Ft.
(1.53m.)
25 Ft. – 3″
(7.70m.)
90-140°F
(30-60°C)
TT-6200 Pad Specs
